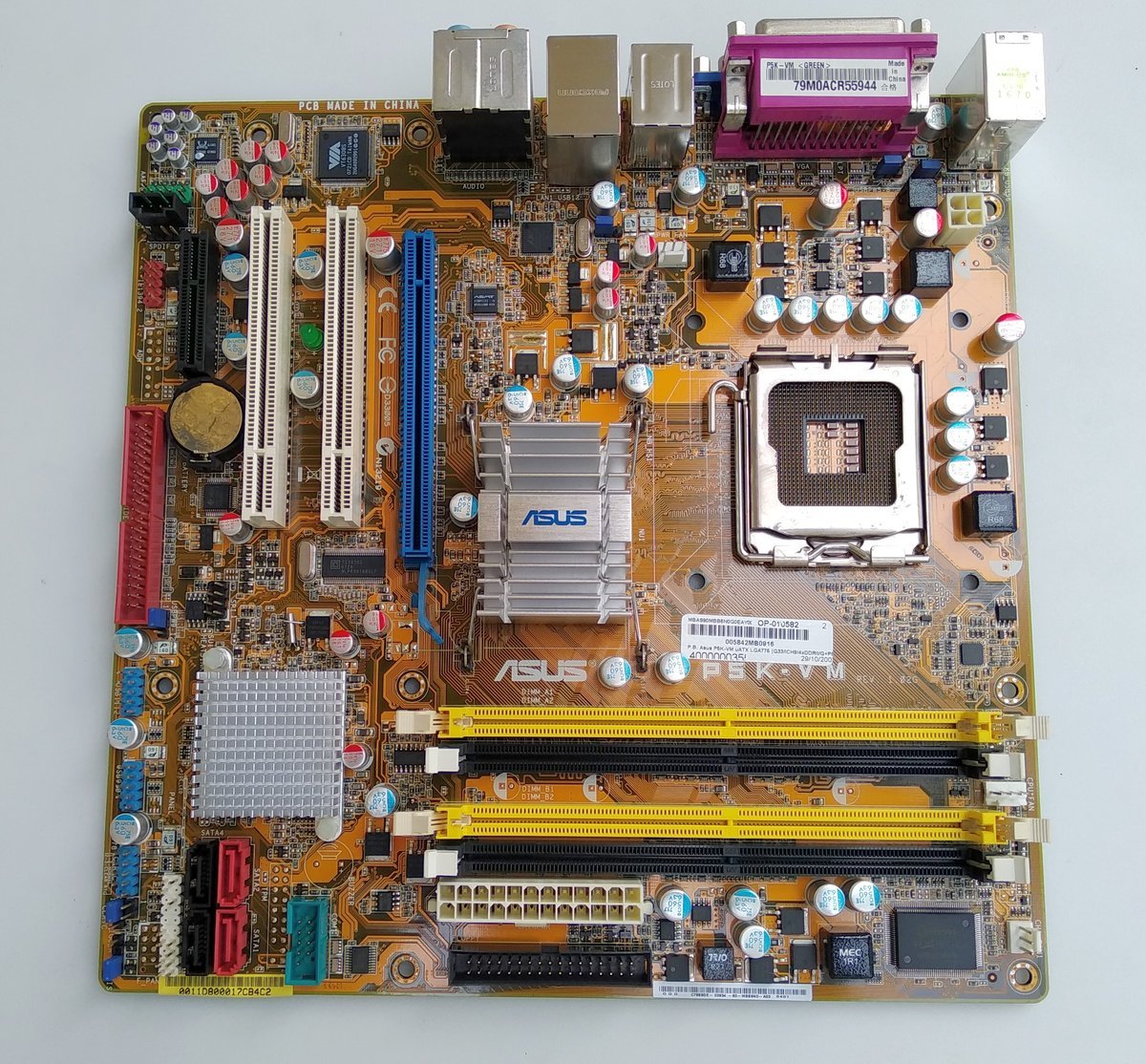

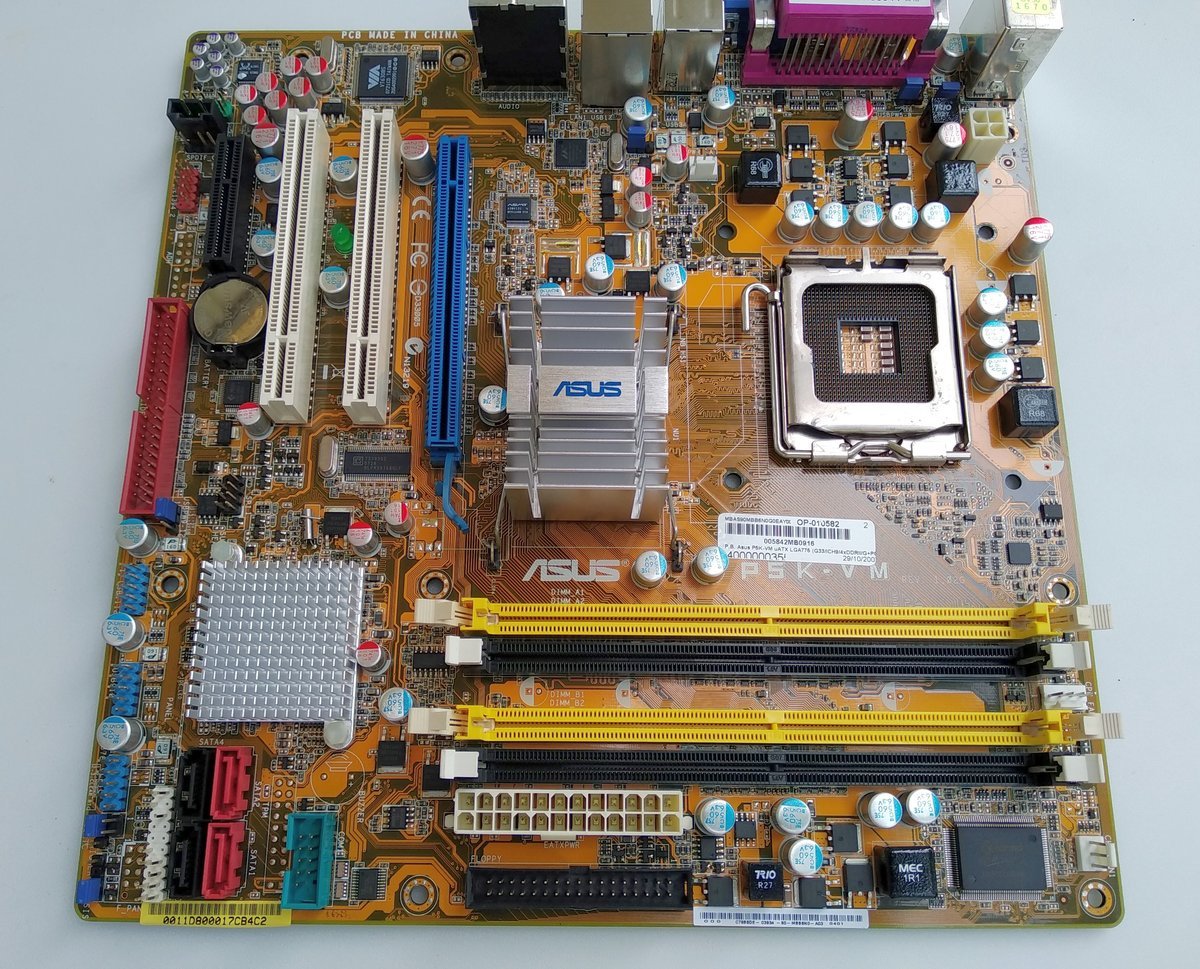

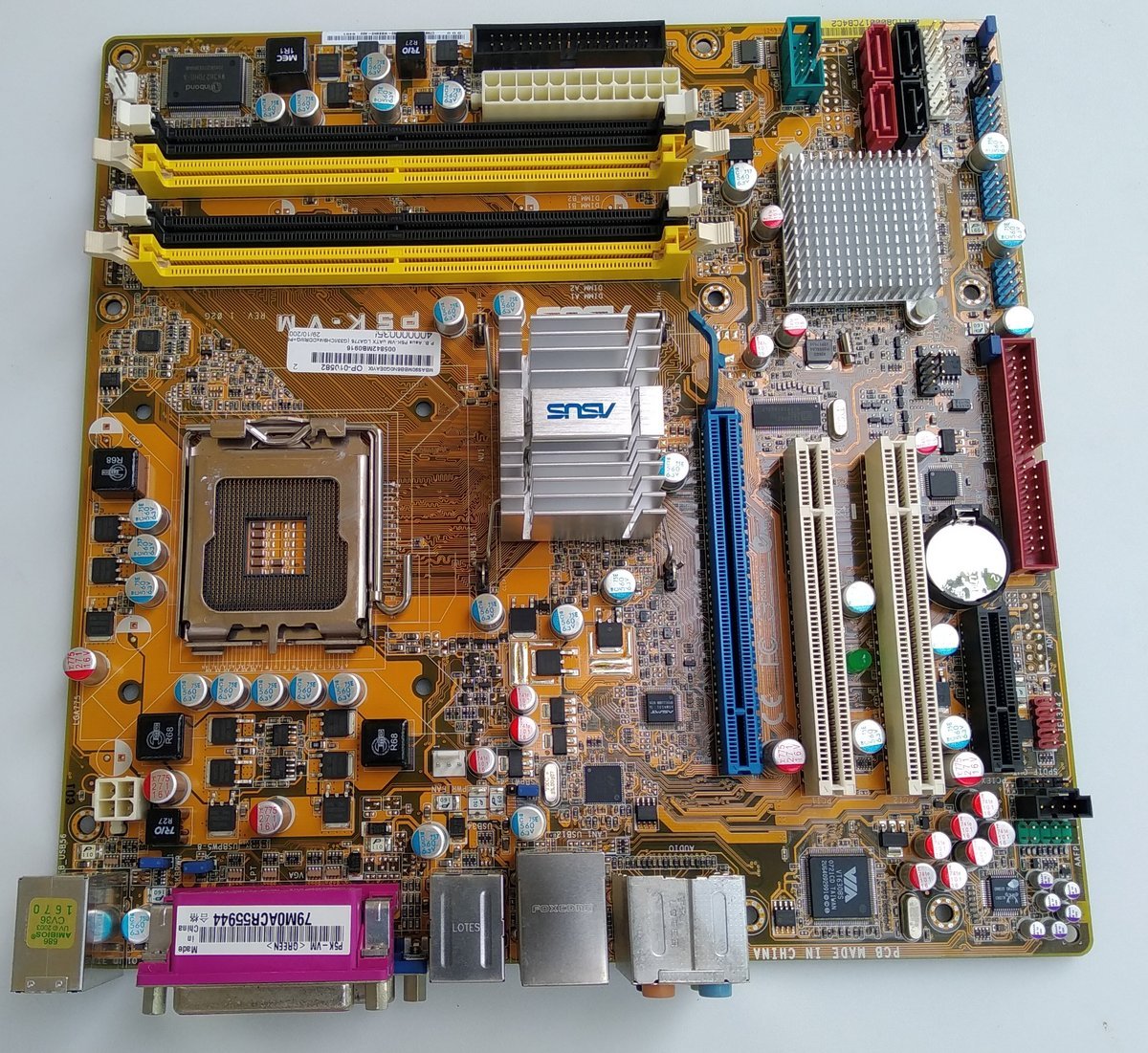

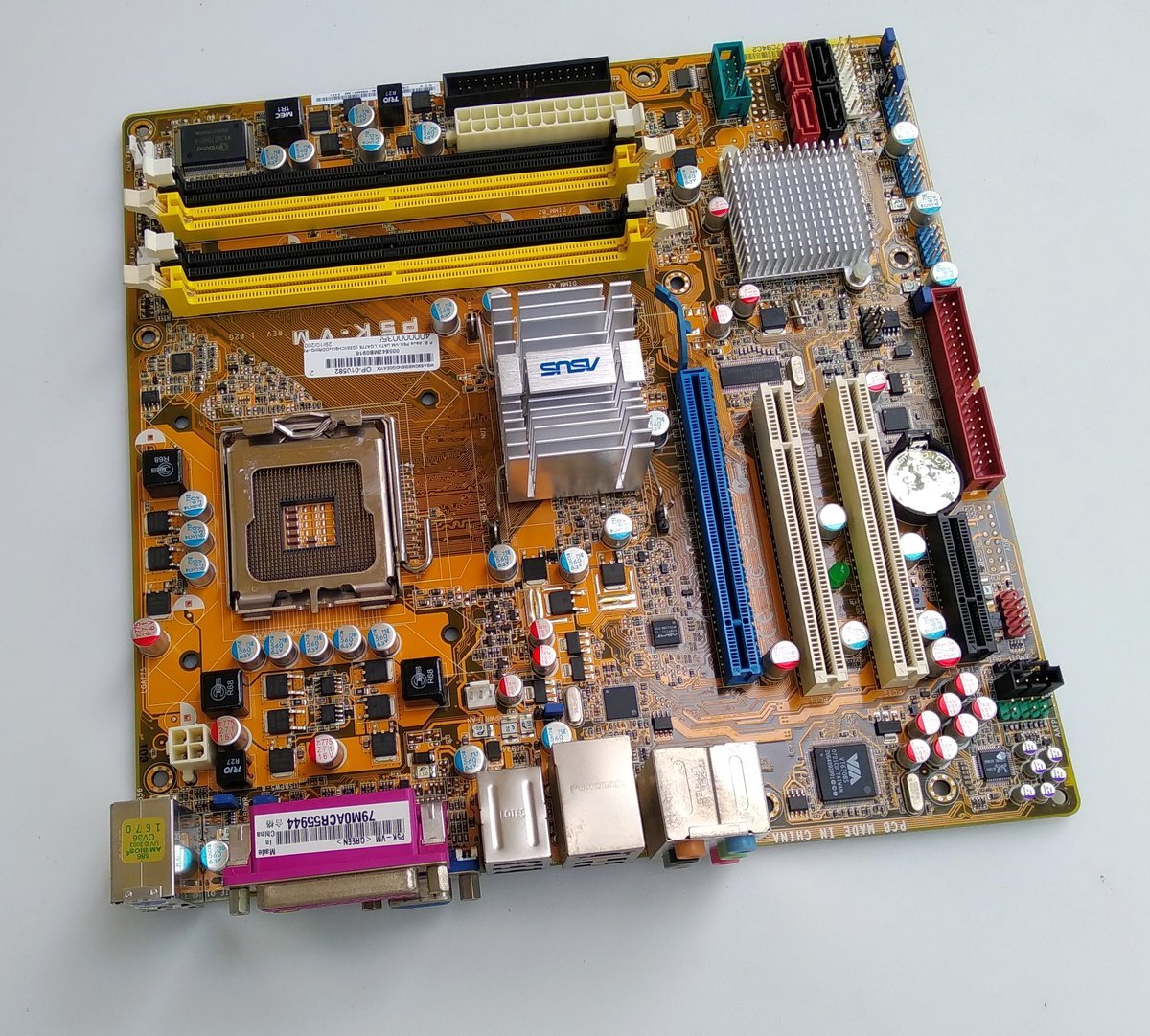

ASUS P5K-VM Rev. 1.02G LGA775 mATX Motherboard

Description

The ASUS P5K-VM Rev. 1.02G is a compact microATX LGA775 motherboard based on the Intel G33 / ICH9 chipset. It supports Intel Core 2, Pentium Extreme, Pentium D and Pentium 4 processors, with a front-side bus up to 1333 MHz.

Technical specifications

• Manufacturer: ASUS
• Model: P5K-VM
• PCB revision: Rev. 1.02G
• Form factor: MicroATX, 24.4 × 24.4 cm
• CPU socket: LGA775
• Chipset: Intel G33 / ICH9
• Supported processors: Intel Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium Extreme, Pentium D and Pentium 4
• System bus: 1333 / 1066 / 800 MHz
• Memory: 4 × 240-pin DDR2 DIMM slots, dual-channel
• Memory support: DDR2-1066 / 800 / 667, up to 8 GB
• Graphics: Integrated Intel graphics with VGA output
• Expansion: 1 × PCI Express x16, 1 × PCI Express x4, 2 × PCI
• Storage: 4 × SATA 3 Gb/s plus 1 × UltraDMA 133/100/66 for up to 2 PATA devices
• LAN: Marvell PCI Express Gigabit Ethernet
• Audio: Realtek ALC883 8-channel High Definition Audio with S/PDIF
• USB: Up to 12 × USB 2.0
• IEEE 1394: 2 × FireWire / IEEE 1394a
• Rear I/O: VGA, parallel, serial, USB, Ethernet and audio connectors

Compatibility

The P5K-VM is intended for Intel LGA775 desktop systems using unbuffered non-ECC DDR2 memory. Check the processor support and BIOS version for the exact CPU before installation.

Board identification: ASUS P5K-VM · Rev. 1.02G · LGA775 · Intel G33/ICH9 · MicroATX.
