Vishay US1J US1JHE3_AH 600V 1A Ultra-fast Rectifier Diode SMA

Vishay US1J US1JHE3_A/H 600V 1A Ultra-fast Rectifier Diode SMA

Name: Vishay US1J US1JHE3_A/H 600V 1A Ultra-fast Rectifier Diode SMA
Brand: Vishay
SKU: 70401088
Availability: InStock

0.23 €

Buy Vishay US1J US1JHE3_A/H ultra-fast rectifier diode, 600V reverse voltage, 1A forward current, 30A surge current.

Hay existencias

SKU: 70401088 Categoría: Components Marca: Vishay

Descripción

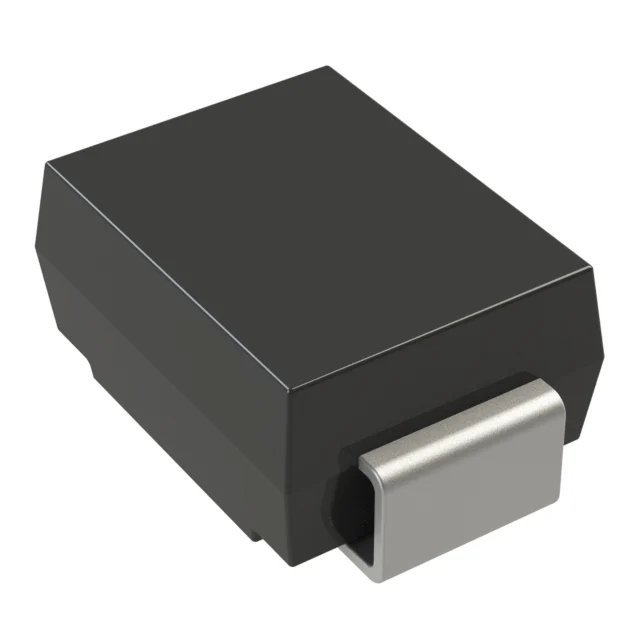

The Vishay US1J US1JHE3_A/H is an ultra-fast rectifier diode with a 600 V repetitive reverse voltage and a 1 A average forward current. Its non-repetitive peak forward surge current reaches 30 A. The typical forward voltage drop is 1.0 V at 1 A. The reverse recovery time is 75 ns. It features low leakage current. The diode is housed in an SMA package with dimensions of 4.5 mm by 2.8 mm by 2.5 mm. This component is AEC-Q101 qualified. Its operating temperature range is from −55 °C to +150 °C. The part number is US1JHE3_A/H. This product is from the Vishay General Semiconductor US1x series.
