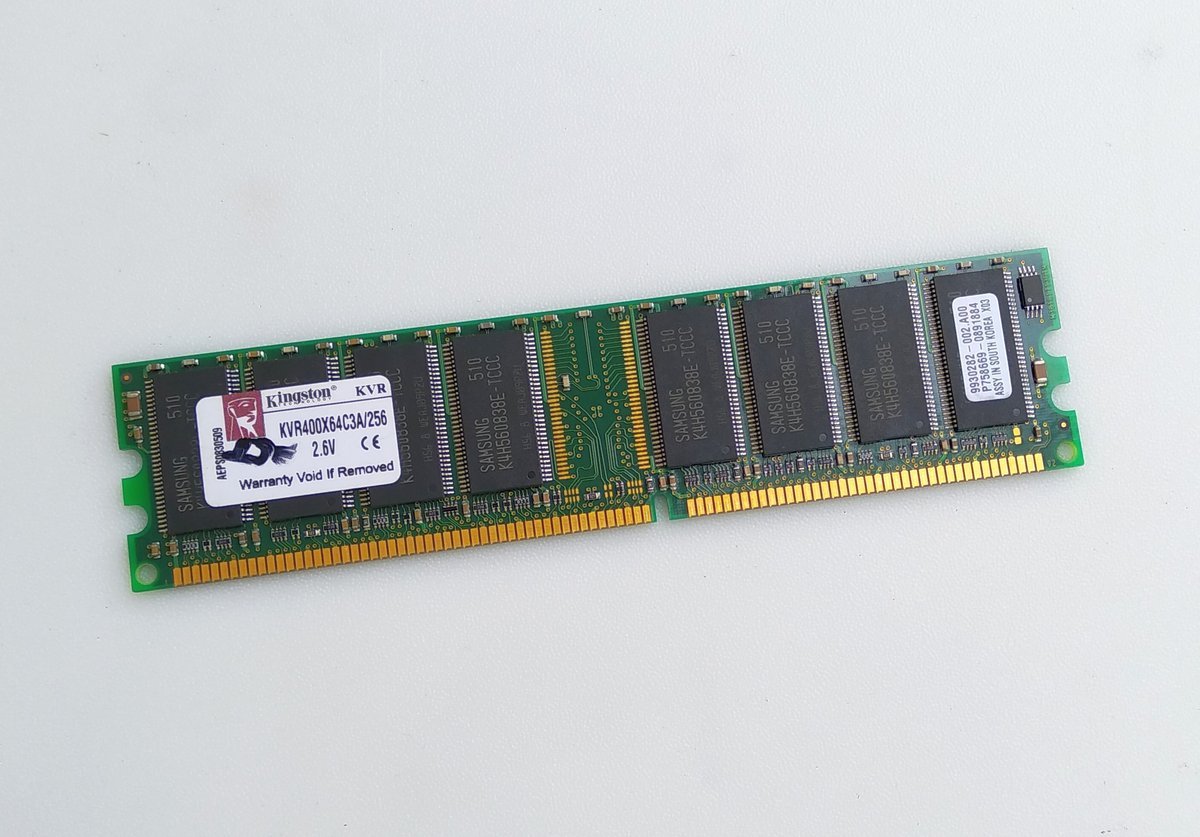

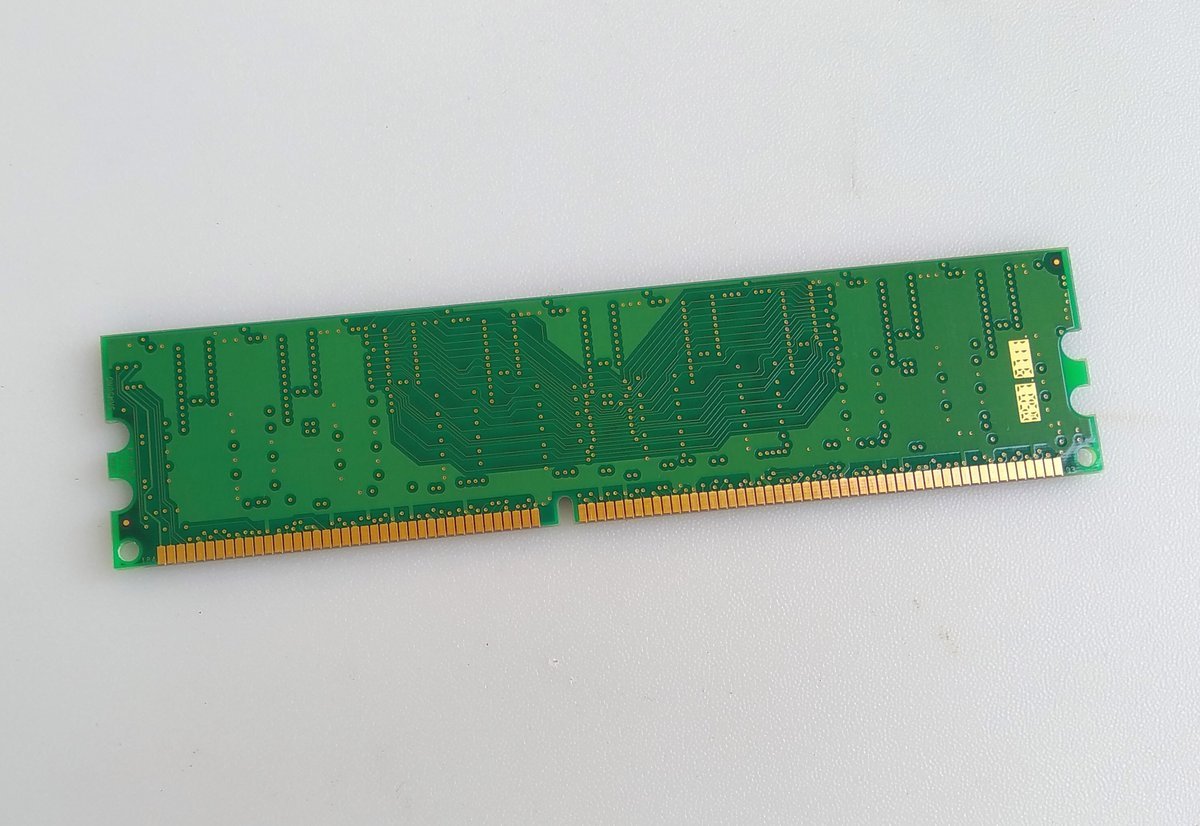

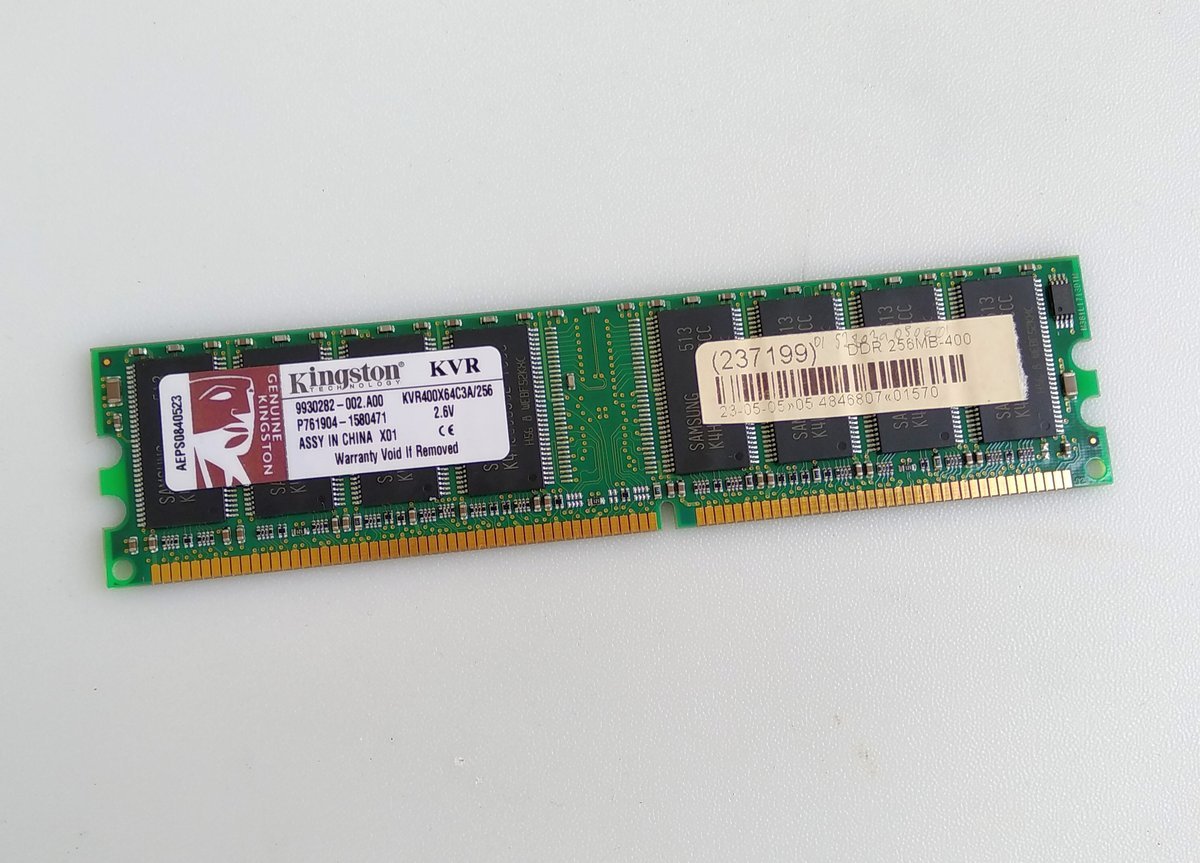

Kingston KVR400X64C3A/256 256MB DDR-400 PC3200 CL3 DIMM

Descripción

The Kingston KVR400X64C3A/256 is a 256 MB ValueRAM DDR400 SDRAM DIMM for legacy desktop systems. Kingston specifies this part as a 184-pin, non-ECC, unbuffered DIMM y adjunta CL3 timing, 1Rx8 organization and a 2.6 V supply.

Technical specifications

• Manufacturer: Kingston
• Family: ValueRAM
• Part number: KVR400X64C3A/256
• Capacity: 256 MB
• Memory type: DDR SDRAM
• Standard: DDR-400 / PC3200
• Speed: 400 MT/s
• CAS latency: CL3
• Module type: DIMM
• Pins: 184-pin
• Data width: 64-bit
• Organization: 32M × 64-bit
• Rank: 1Rx8
• ECC: Non-ECC
• Buffered: Unbuffered
• Supply voltage: 2.6 V
• Memory chips: 8 × 32M × 8-bit DDR SDRAM
• Maximum module height: 31.75 mm

Compatibility

This is legacy DDR1 / DDR SDRAM memory using the 184-pin desktop DIMM standard. It is intended for motherboards that support DDR-400 or PC3200 memory. It is not compatible with DDR2, DDR3 or later DIMM slots because those generations use different electrical and physical specifications.

Identification

Kingston KVR400X64C3A/256 · 256 MB · DDR400 / PC3200 · CL3 · 184-pin · 1Rx8 · Non-ECC · Unbuffered · 2.6 V.

Note: Check the motherboard documentation for supported DDR speed, maximum memory capacity and module configuration before installation. Kingston lists this exact part as a discontinued ValueRAM module.
